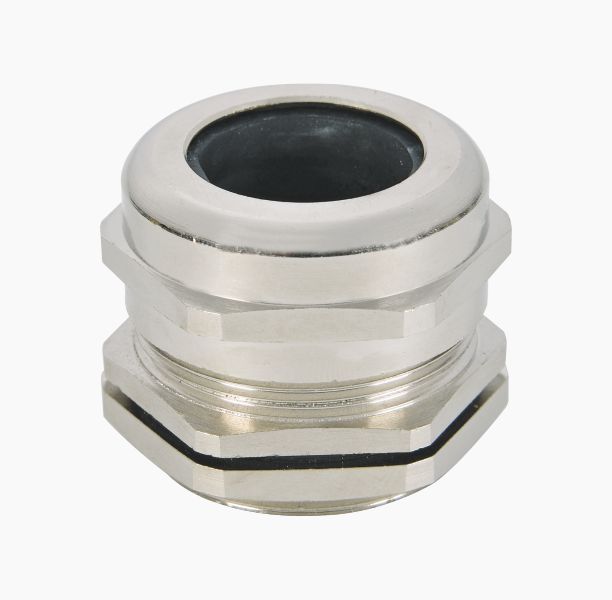

PG Cable Gland

RUPAM Alco G Type brass indoor cable gland for use with all types of Single Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity thru armour wire termination. The Aico G design offers the benefit of a longer body to protect the armour wires from impact. The Aico G range of industrial cable gland is designed as per BS6121:1989

TECHNICAL INFORMATION
Type PG
Design Specification BS 6121: Part 1: 1989
Standard Gland Material Nickel Plated Brass
Gland
Size
Clamping Range
Min. (MM) Max. (MM)
PG 7
3.00
6.50
PG 9
4.00
8.00
PG 11
5.00
10.00
PG 13.5
6.00
12.00
PG 16
10.00
14.00
PG 21
13.00
18.00
PG 29
18.00
25.00
PG 36
22.00
32.00
PG 42
32.00
38.00
PG 48
37.00
44.00
All dimensions are in millimetre
