RUPAM BW Type brass indoor cable gland for use with all types of Single Wire Armour (SWA) cable providing mechanical cable retention and electrical continuity thru armour wire termination. This cable gland is designed and tested as per BS6121:1989. It meets the requirement of EN 50262:1999
| TECHNICAL INFORMATION | |
| Type | BW Knurling 2 Part |
| Design Specification | BS 6121: Part 1:1989 |
| Standard Gland Material | Brass |
| Optional Gland Material | Nickel Plated Brass |
| Cable Type | Single Wire Armour (SWA) |
| Armour Clamping | Two Part Armour Lock |
| Available Accessories | teel/Brass Locknut,PVC/LSF Shroud, Brass Earth Tag, Nylon Washer, Brass Reducer |

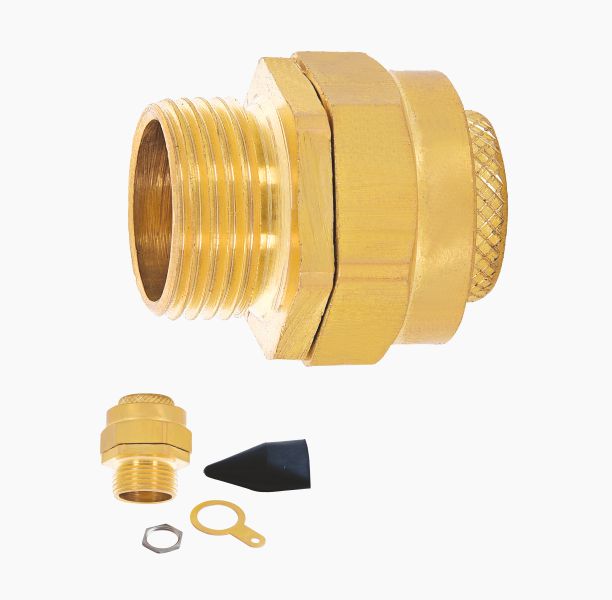

CABLE GLAND KIT CONTAINS:
Gland
Lock Nut
Shroud
Earth Tag
Kit contains two sets of
above items up to 32mm sizes & one set from 40mm and above sizes

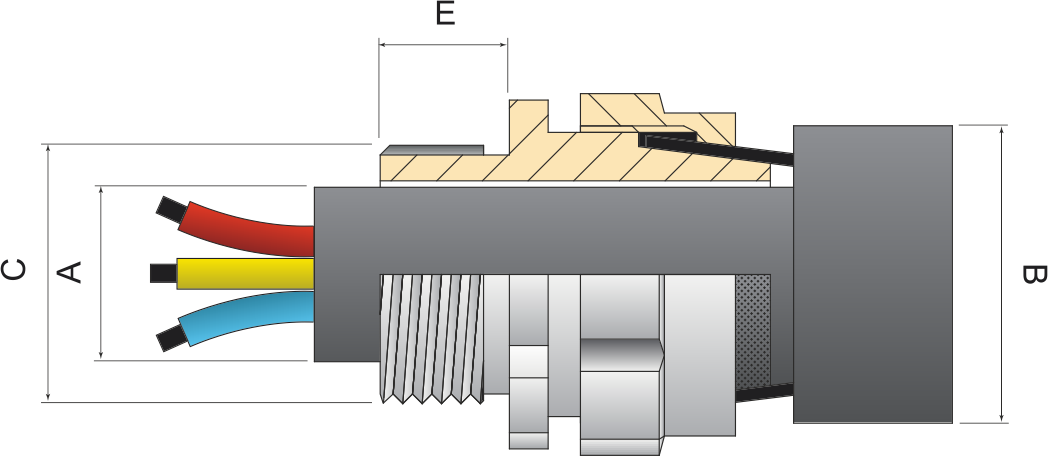

| Gland Size | Entry Thread | Cable Acceptance Detail | Across Flat |
Across Corner |
|||
| Dia. C | Length Minimum E |
Dia. "A" Max |
Dia. "B" Max |
Armour Diameter |
|||
|
20 S
|
20
|
10
|
11.60
|
16.00
|
0.90/1.25
|
21.00
|
23.40
|
|
20 L
|
20
|
10
|
14.50
|
20.00
|
0.90/1.25
|
24.00
|
27.00
|
|
25 L
|
25
|
10
|
20.50
|
26.30
|
1.25/1.60
|
32.00
|
35.50
|
|
32 L
|
32
|
10
|
27.00
|
33.50
|
1.60/2.00
|
40.50
|
45.00
|
|
40 L
|
40
|
15
|
34.00
|
41.00
|
1.60/2.00
|
49.00
|
55.50
|
|
50 L
|
50
|
15
|
44.00
|
52.50
|
2.00/2.50
|
61.00
|
68.00
|
|
63 L
|
63
|
15
|
56.00
|
66.00
|
2.50
|
76.00
|
86.00
|
|
75 L
|
75
|
15
|
68.00
|
78.00
|
2.50
|
88.00
|
98.00
|
|
90 L
|
90
|
20
|
79.00
|
90.00
|
2.50/3.15
|
104.00
|
117.00
|
