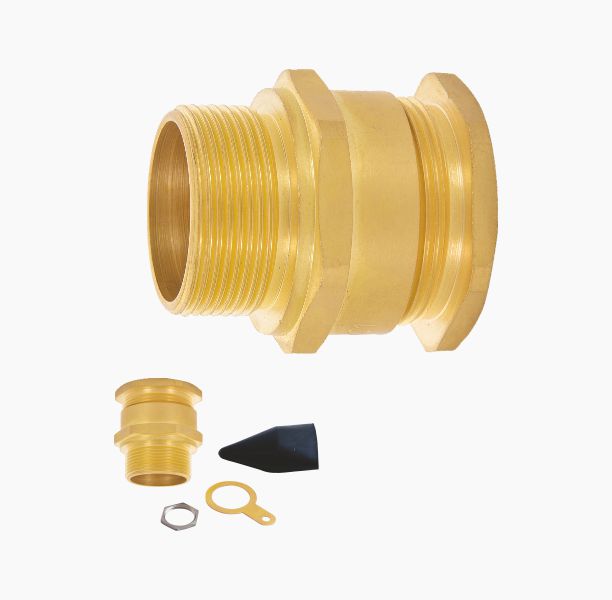

RUPAM A2 Type brass indoor cable gland is used with all types of unarmoured cable, providing mechanical cable retention, seaIing is provided on the cable outer sheath. The RUPAM A2 range of industrial cable gland is designed and tested as per BS 6121:Part 1:1989. It meets the requirements of EN 50262 :1999.
| TECHNICAL INFORMATION | |
| Type | A2 |
| Design Specification | BS 6121: Part 1: 1989. |
| Ingress Protection Rating | IP66 |
| Standard Gland Material | Brass |
| Optional Gland Material | Nickel Plated Brass |
| Cable Type | Unarmoured |
| Sealing Area(s) | Cable Outer Sheath |
| AvailableAccessories | Steel/Brass Locknut,PVC/LSF Shroud Brass Earth Tag, Nylon Washer, Brass Reducer |
CABLE GLAND KIT CONTAINS:
Gland
Lock Nut
Shroud
Earth Tag
Kit contains two sets of
above items up to 32mm sizes & one set from 40mm and above sizes

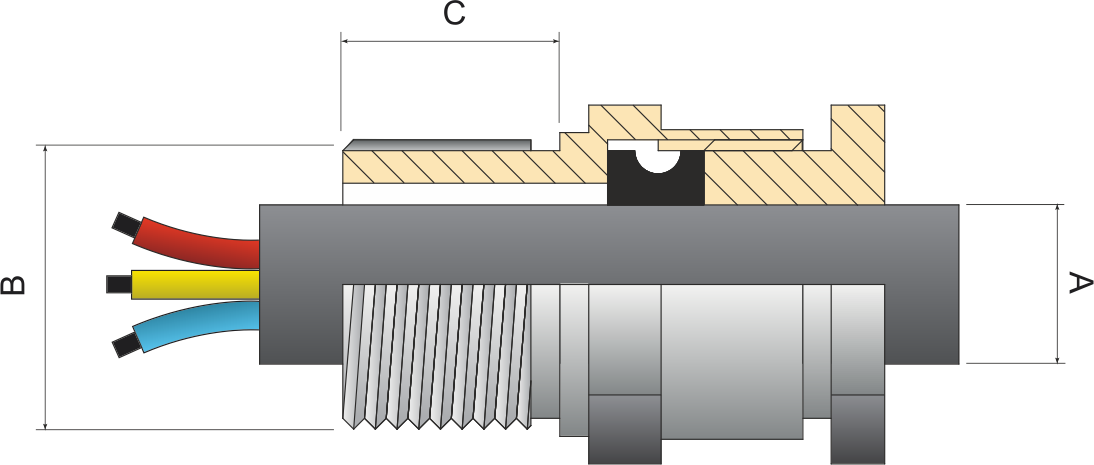

| Gland Size | Entry Thread | Cable Acceptance Detail | |||
| Dia. B | Length Minimum C |
Dia. "A" Max |
Across Flat |
Across Corner |
|
|
16 L
|
16
|
10
|
3.50- 9.00
|
21.00
|
24.00
|
|
20 S
|
20
|
15
|
8.00 - 11.70
|
22.50
|
25.00
|
|
20 L
|
20
|
15
|
11.00 - 14.00
|
24.00
|
26.60
|
|
25 S
|
25
|
15
|
12.00 - 17.00
|
27.00
|
30.50
|
|
25 L
|
25
|
15
|
13.00 - 20.50
|
29.50
|
33.00
|
|
32 S
|
32
|
15
|
16.50 - 23.00
|
35.00
|
38.50
|
|
32 L
|
32
|
15
|
19.00 - 26.30
|
39.00
|
43.00
|
|
40 S
|
40
|
20
|
23.00 - 29.00
|
43.00
|
48.00
|
|
40 L
|
40
|
20
|
25.00 - 33.00
|
46.00
|
51.00
|
|
5O S
|
50
|
20
|
31.50 - 39.00
|
56.00
|
62.00
|
|
5O L
|
50
|
20
|
36.50 - 44.00
|
62.00
|
68.00
|
|
63 S
|
63
|
20
|
42.50 - 50.00
|
66.00
|
73.00
|
|
63 L
|
63
|
20
|
48.00 - 56.00
|
72.00
|
79.00
|
|
75 S
|
75
|
20
|
54.50 - 62.00
|
77.00
|
85.00
|
|
75 L
|
75
|
20
|
60.50 - 68.00
|
86.00
|
95.00
|
|
90 L
|
90
|
20
|
67.00 - 79.00
|
100.00
|
112.00
|
